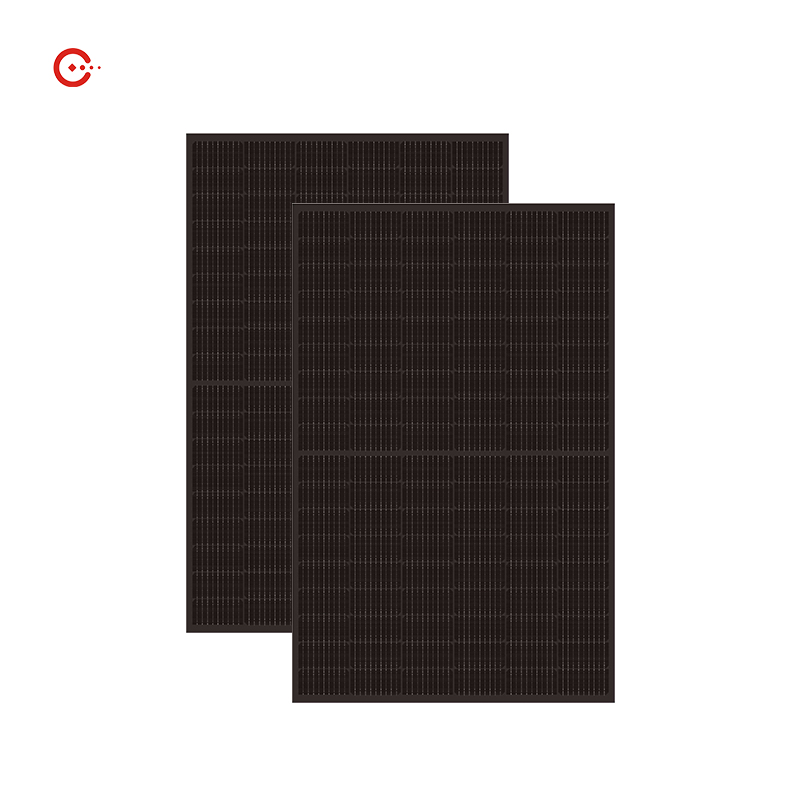

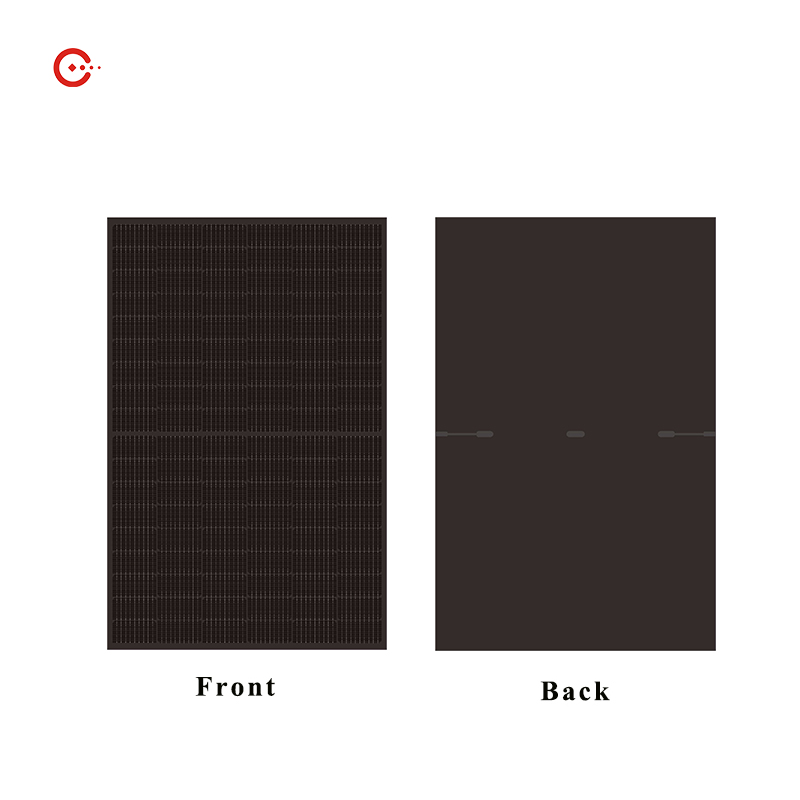

All Black Module DDP315

  • Monocrystalline Cell: Mono 108pcs(6*9*2)
  • Maximum Efficiency: 19.6%
  • Power Output Range: 315-325Wp
  • Junction box/Connector : Ip68,split / MC4 compatible
  • Module Dimensions : 1600*1036*5mm
  • Packing: 33pcs/pallet

Product Introduction

Product Advantage

Green building materials standards

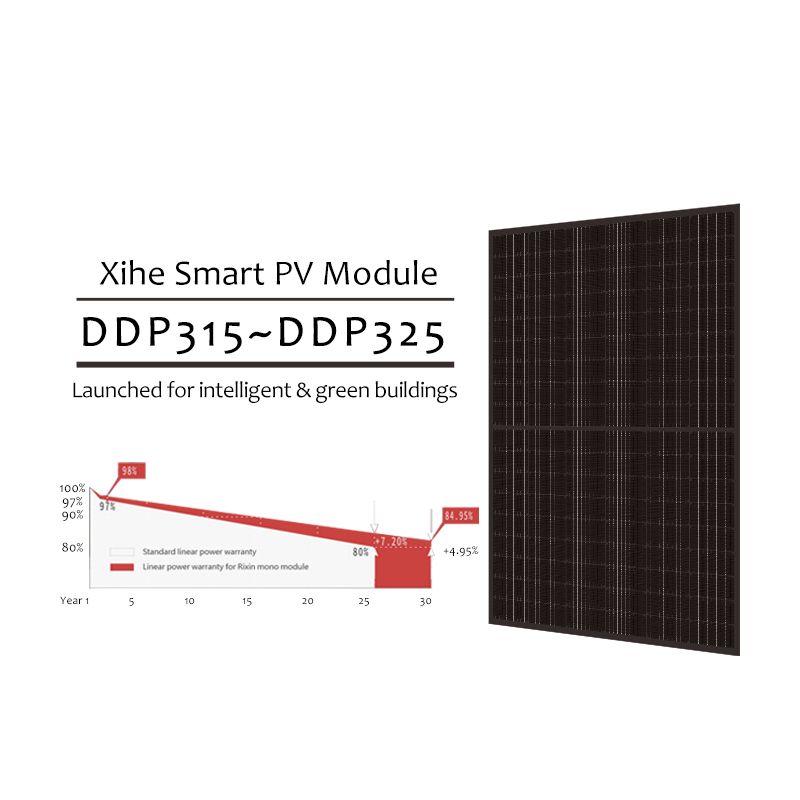

Designed in accordance with green building materials standards, 30% power generation guarantee.



PREC technology

High Efficient  the power generation gain is significantly improved with the back light gain.



More security

Component-level safety shutdown, power optimization, monitoring functions.



Reduce shadow occlusion loss

Half-chip technology + intelligent optimization technology.

Avoid shadow occlusion and reduce power loss.



Easy for installation

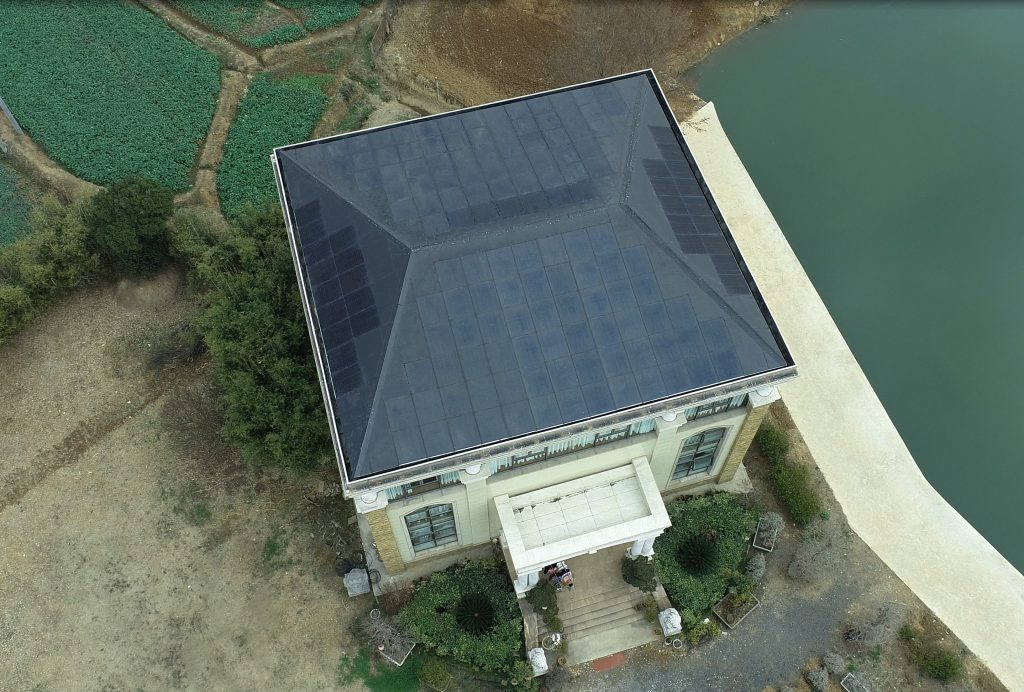

can achieve a flat & full installation.

Suitable for various applications.

Product Parameters



 PREC Mono Bifacial Double Glass Module DDP315~325
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type DDP315 DDP320 DDP325
Maximum power(Pm/Wp) 315 320 325
Maximum power voltage(Vmp/V) 29.3 29.4 29.5
Maximum power current(lmp/A) 10.75 10.88 11.00
Open circuit voltage(Voc/V) 35.9 36 36.1
Short circuit current(Isc/A) 11.54 11.60 11.66
Module efficient(%) 19.0 19.3 19.6
Module working temperature range (℃) 45±2℃   Home,Commercial,Industrial,Solar Home System,Solar System or solar pant
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.06%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 1600*1036*5
Module weight (kg) 19
Cable 4m㎡  negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell Nos & array Mono 108pcs(6*9*2)
Packing 33pcs/pallet
Quality parameters
NOCT(℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 20
Front/rear static loads(Pa) 2400/2400

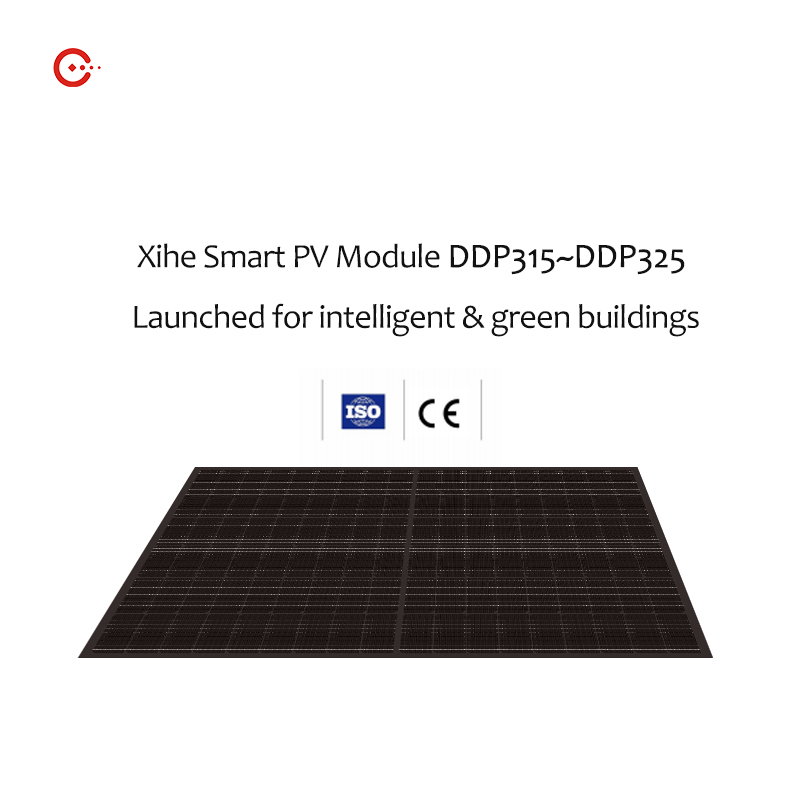

Product Certification
