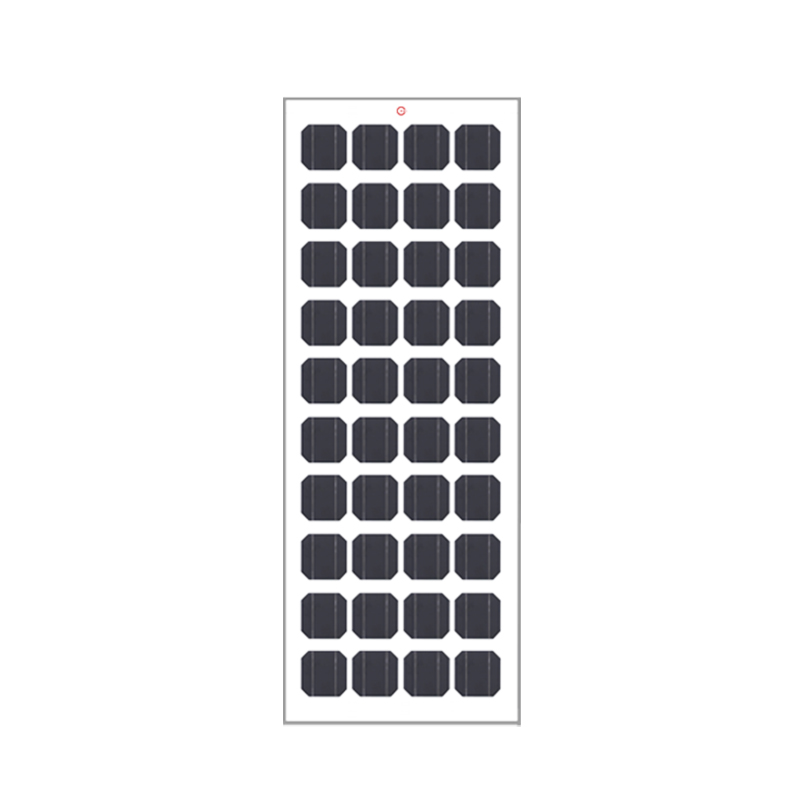

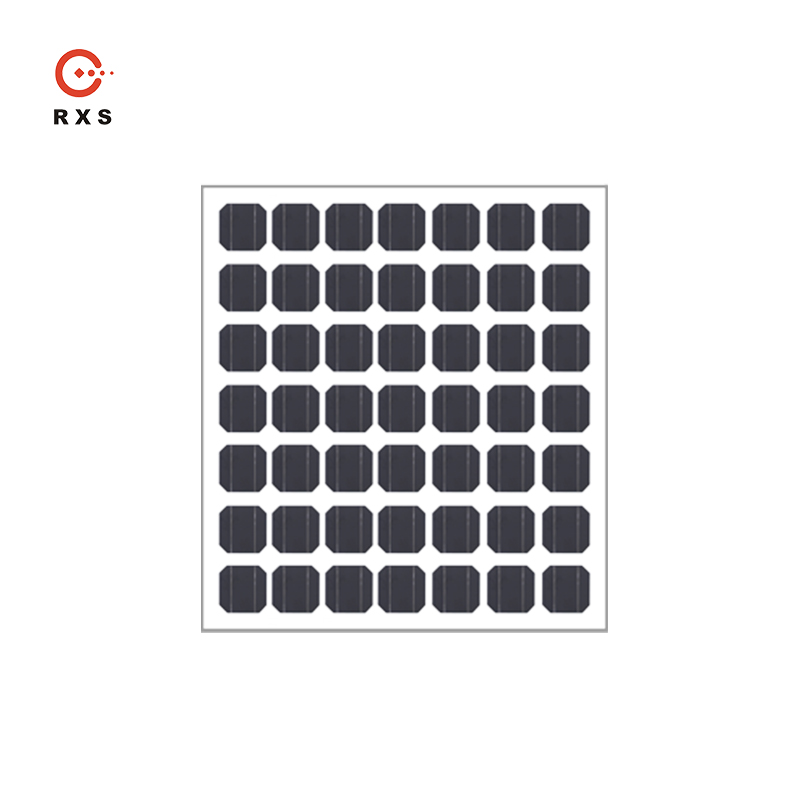

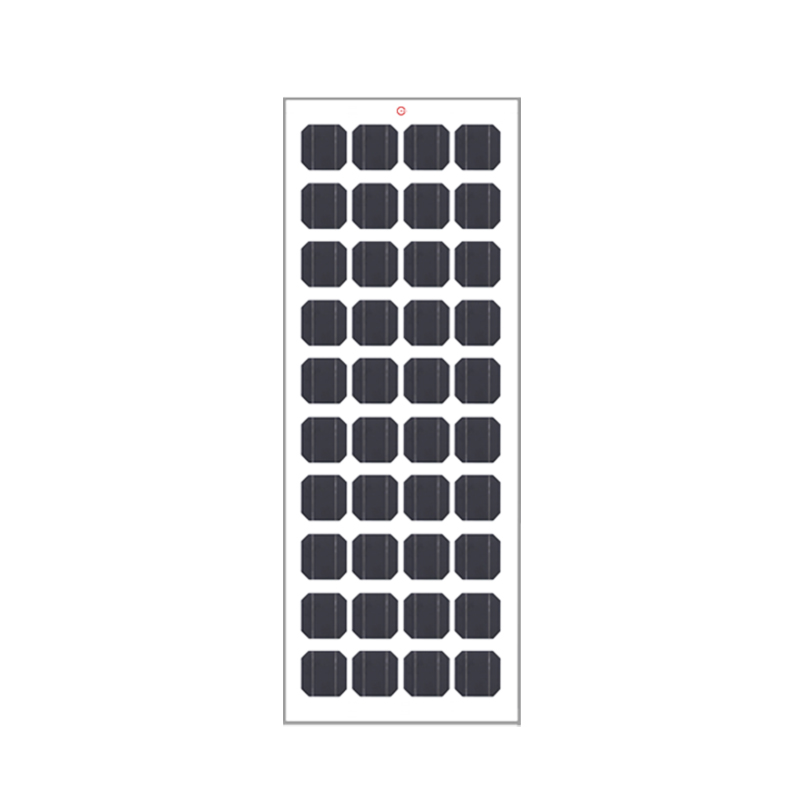

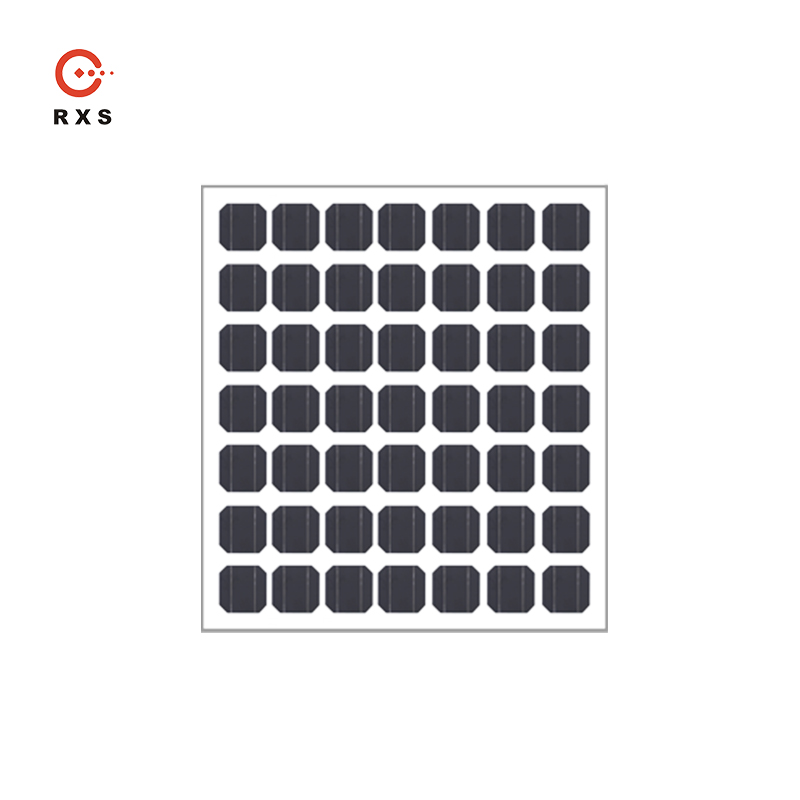

Mono Bifacial Hollow Glass RXZK-DDN250

  • Heat transfer coefficient: 3.0W/m2K
  • Maximum Efficiency: 16.2%
  • Power Output Range: 250Wp
  • Maximum System Voltage: DC1500
  • Module Dimensions: 1460×1060×26mm
  • Wind resistance: 2.4kN/m2

Product Introduction

Product Advantage

  1. High power output

30 year linear performance warranty, more than 30% additional power gain.



  1. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.



  1. Fire safety performance

Higher fire safety class to minimize fire risks.



  1. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.



  1. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.

25 Years Solar Panel Warranty



Product Parameters

Product name Monocrystalline bifacial hollow glass Module
Type RXZK-DDN250
Electrical parameters Maximum power (Pm/Wp)* 250
Power tolerance (%) ±5
Maximum power voltage (Vmp/V)* 25.9
Maximum power voltage ( Imp/A)* 9.65
Open circuit voltage (Voc/V)* 32.4
Short circuit current (Isc/A)* 10.15
Module efficiency ηc(%)* 16.2
Maximum system voltage(V) 1500
Working temperature(℃) -40~85
Temperature coefficient of Pm -0.38%/℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc +0.048%/℃
Mechanical parameters Fault structure(mm) 5 Low iron tempered glass+0.76PVB+single crystal double-sided cell+0.76PVB+5 tempered glass+9A+5 tempered glass
Heat transfer coefficient 3.0W/m2K
Cable 4mm2/900mm
Module dimension (L*W*H)(mm) 1460mm*1060mm*26mm
Module Weight (kg) 60kg
Wind resistance 2.4kN/m2

Product Certification
