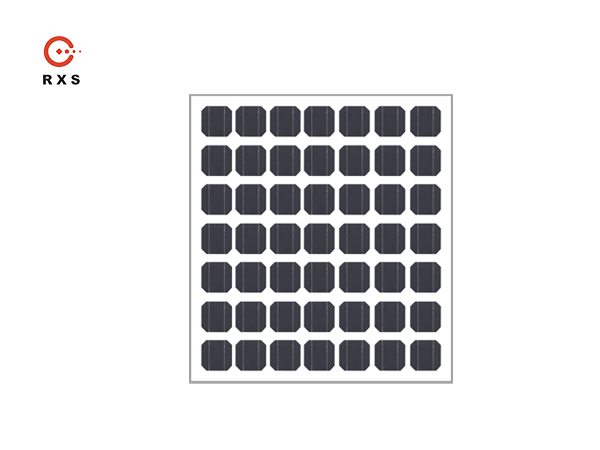

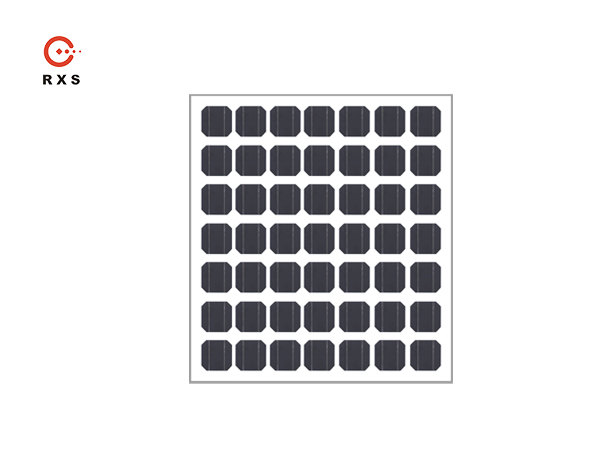

Mono Hollow Glass RXZK-DDN310

  • Heat transfer coefficient: 3.0W/m2K
  • Maximum Efficiency: 16.5%
  • Power Output Range: 310Wp
  • Maximum System Voltage: DC1500
  • Module Dimensions: 1775mm*1060mm*26mm
  • Wind resistance: 2.4kN/m2

Product Introduction





Product Advantage

BIPV SOLAR MODULE

BIPV SOLAR MODULE

BIPV SOLAR MODULE

BIPV SOLAR MODULE

BIPV SOLAR MODULE

Product Parameters

Product name Monocrystalline bifacial hollow glass Module
Type RXZK-DDM310
Electrical parameters Maximum power (Pm/Wp)* 310
Power tolerance (%) ±5
Maximum power voltage (Vmp/V)* 32.1
Maximum power voltage ( Imp/A)* 9.65
Open circuit voltage (Voc/V)* 38.2
Short circuit current (Isc/A)* 10.4
Module efficiency ηc(%)* 16.5
Maximum system voltage(V) 1500
Working temperature(℃) -40~85
Temperature coefficient of Pm -0.38%/℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc +0.048%/℃
Mechanical parameters Fault structure(mm) 5 Low iron tempered glass+0.76PVB+single crystal double-sided cell+0.76PVB+5 tempered glass+9A+5 tempered glass
Heat transfer coefficient 3.0W/m2K
Cable 4mm2/900mm
Module dimension (L*W*H)(mm) 1775mm*1060mm*26mm
Module Weight (kg) 70kg
Wind resistance 2.4kN/m2

Product Certification
