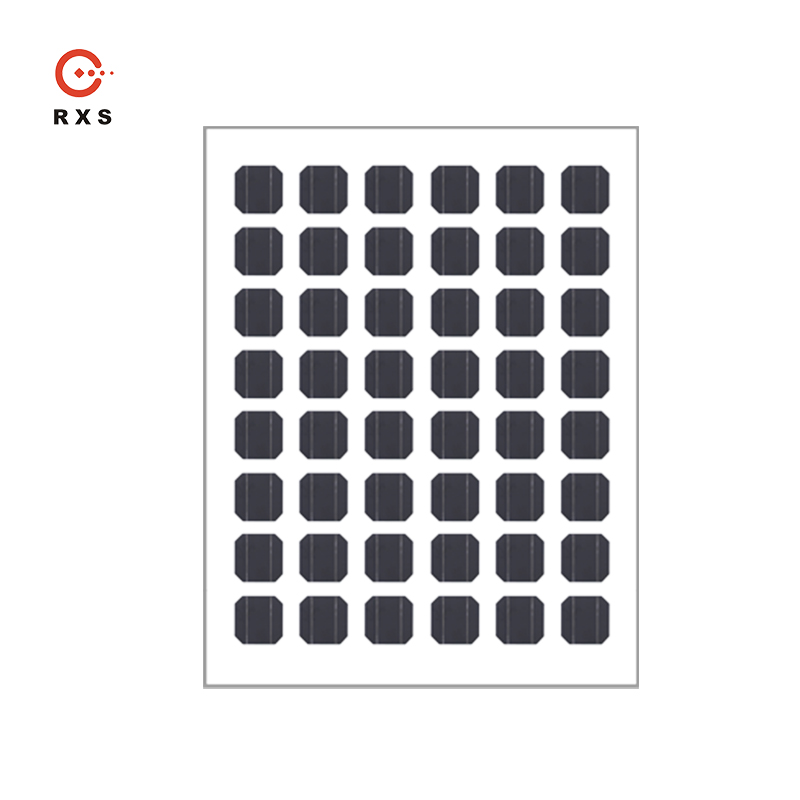

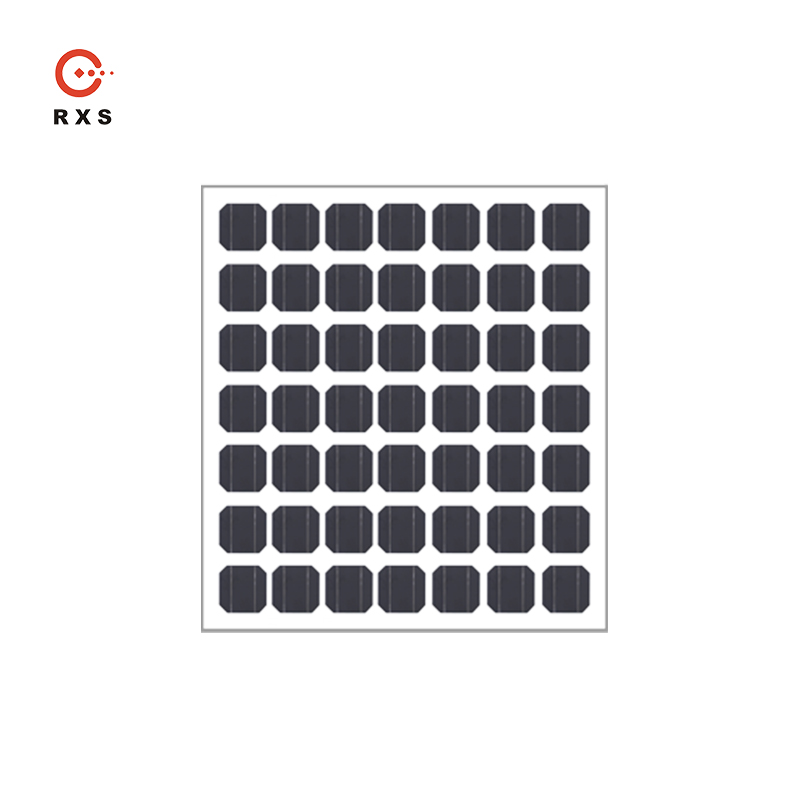

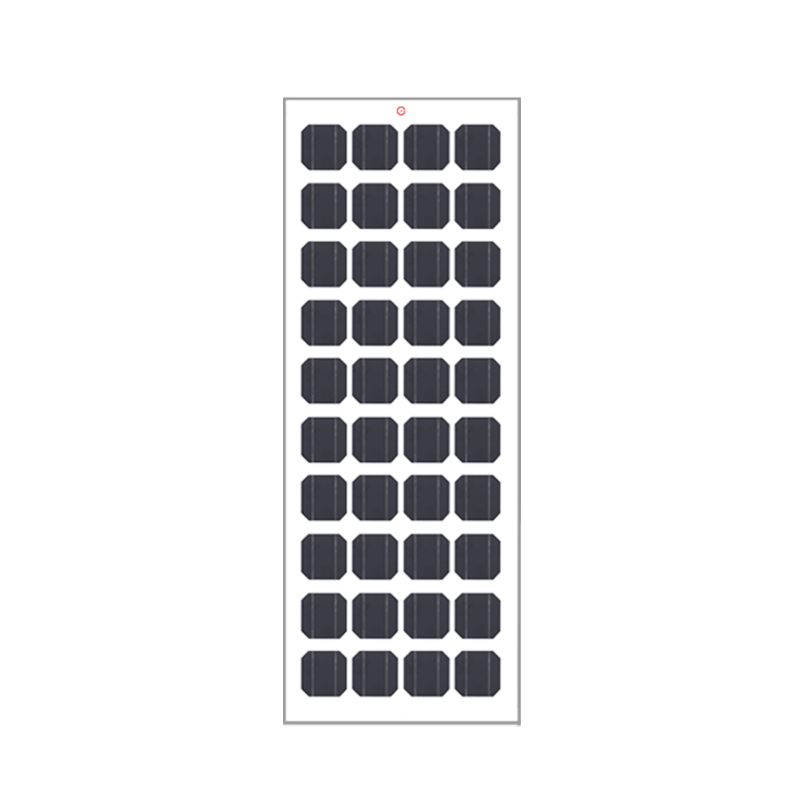

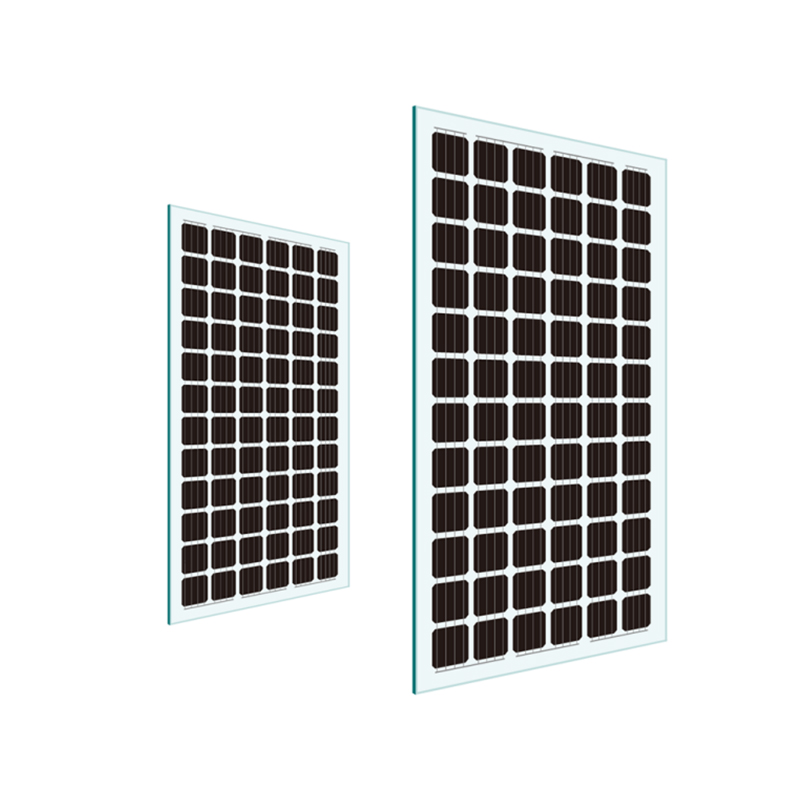

Mono Bifacial Laminated Glass RXJJ-DDN250

  • Module Type : Monocrystalline Bifacial laminated glass Module
  • Module Efficiency: 16.2%
  • Power Output Range: 250Wp
  • Module Weight (kg): 40kg
  • Module Dimensions: 1460*1060*11mm
  • Wind resistance: 2.4kN/m2

Product Introduction







Product Advantage

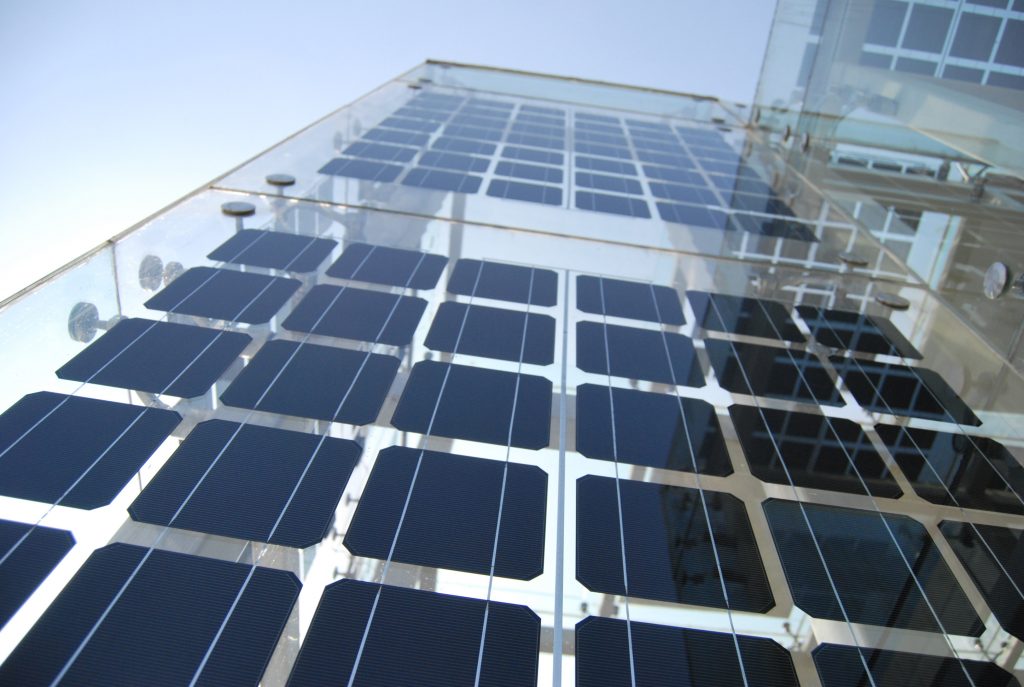

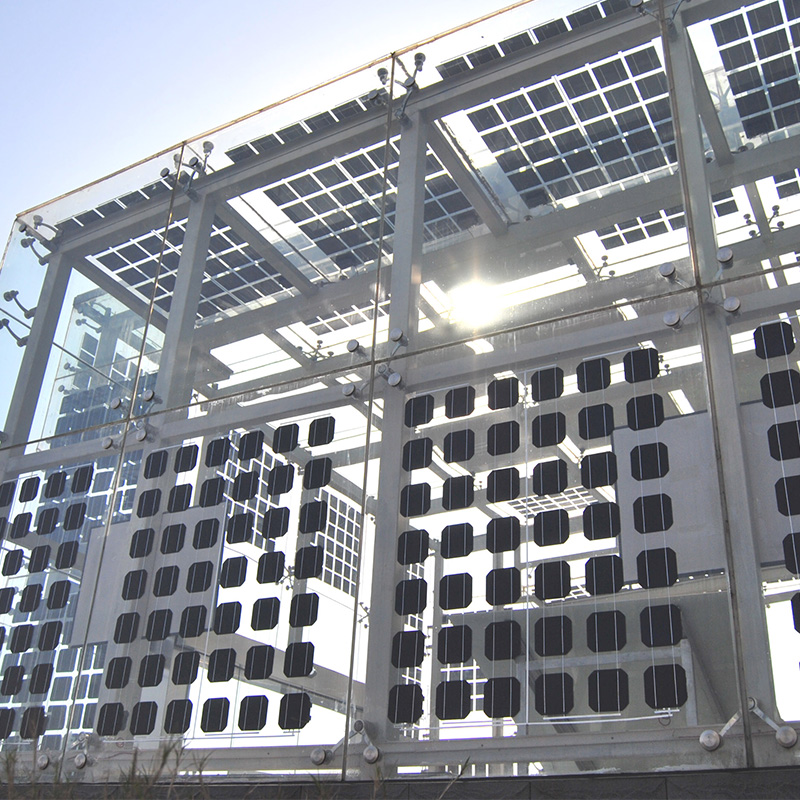

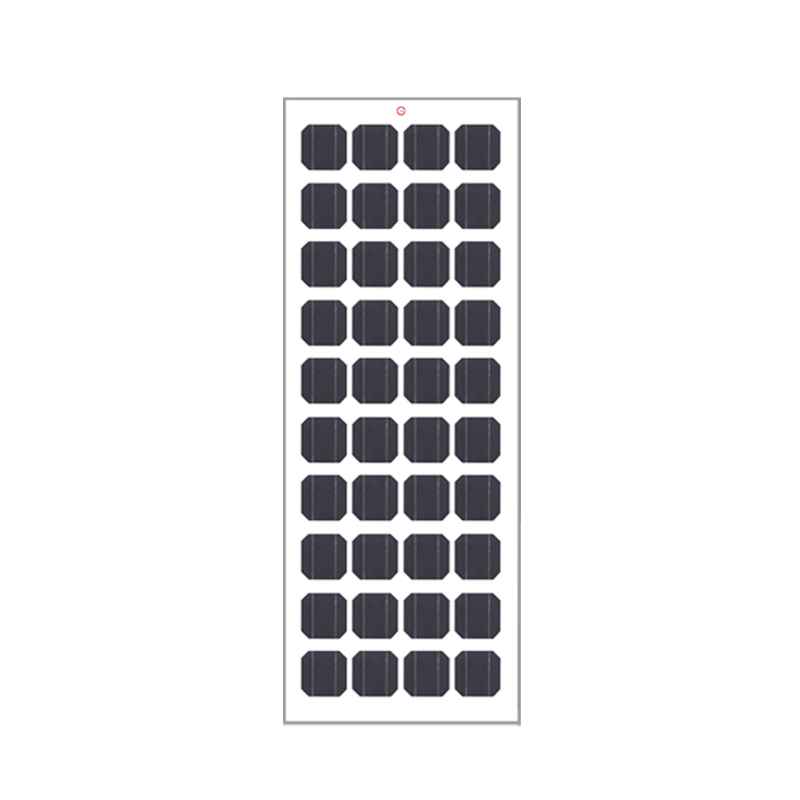

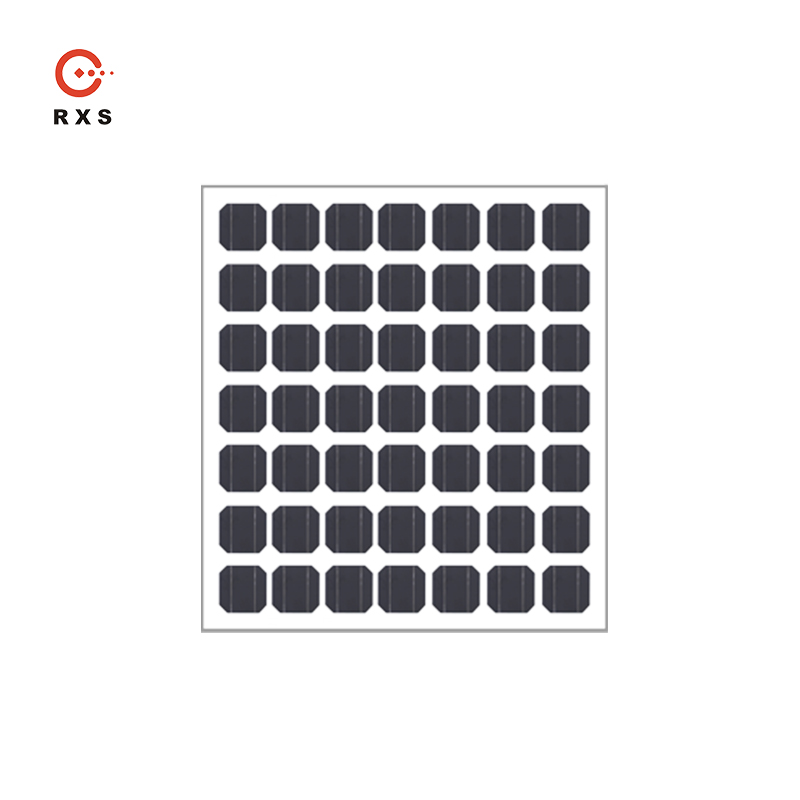

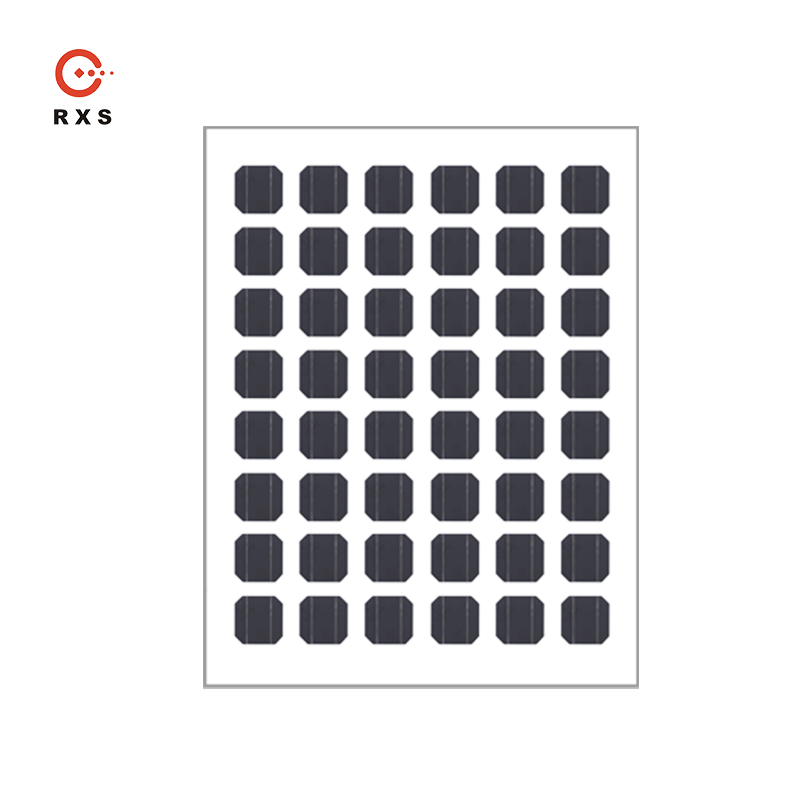

BIPV SOLAR MODULE

BIPV SOLAR MODULE

BIPV SOLAR MODULE

BIPV SOLAR MODULE

Product Parameters

Product name Monocrystalline Bifacial laminated glass Module
Type RXJJ-DDN250
Electrical parameters Maximum power (Pm/Wp)* 250
Power tolerance (%) ±5
Maximum power voltage (Vmp/V)* 25.9
Maximum power voltage ( Imp/A)* 9.65
Open circuit voltage (Voc/V)* 32.4
Short circuit current (Isc/A)* 10.15
Module efficiency ηc(%)* 16.2
Maximum system voltage(V) 1500
Working temperature(℃) -40~85
Temperature coefficient of Pm -0.38%/℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc +0.048%/℃

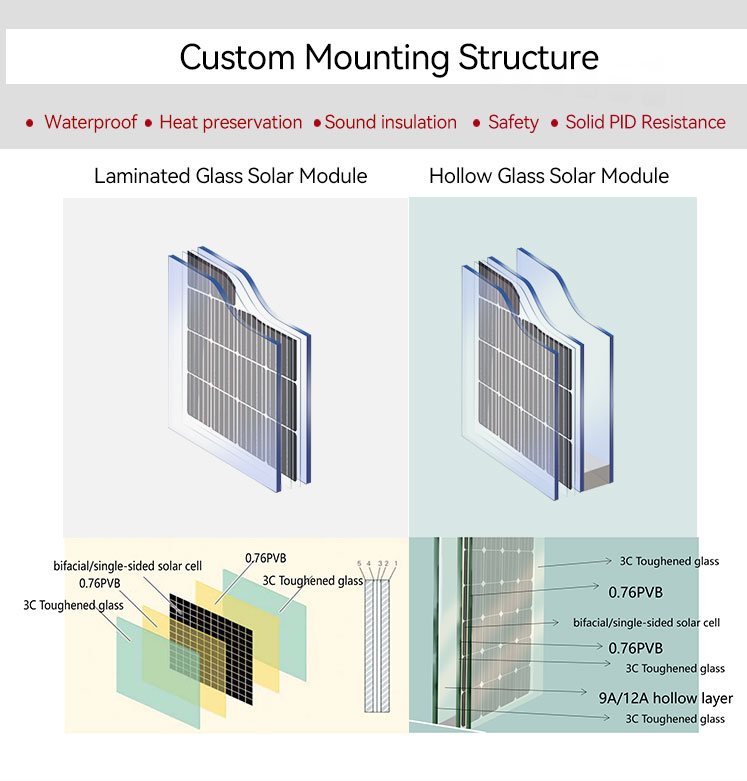

Mechanical parameters Fault structure(mm) 5 tempered glass+0.76PVB+single crystal double-sided cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced)
Cable 4mm2/900mm
Module dimension (L*W*H)(mm) 1460mm*1060mm*11mm
Module Weight (kg) 40kg
Wind resistance 2.4kN/m2

Product Certification
