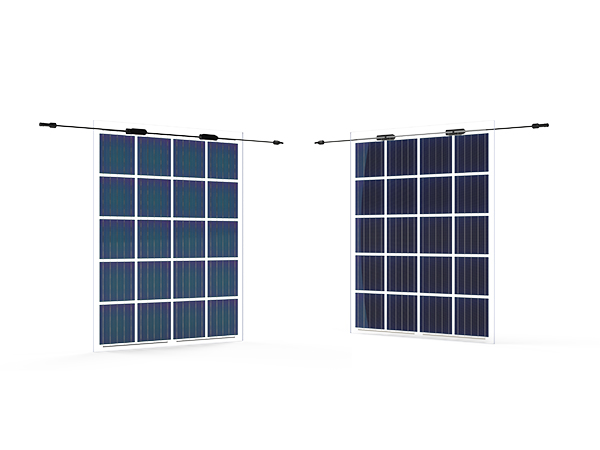

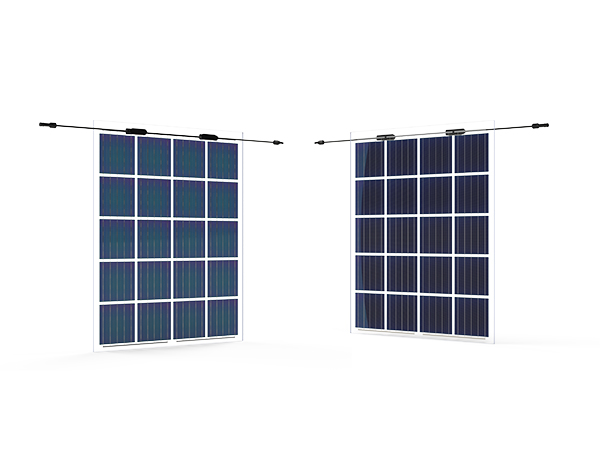

Mono Glas Glas RXJJ-105A

Consult online

Product Introduction

Mechanical performance parameters

Model	RXJJ–105A
Maximum power at STC (Pm/Wp)	105
Maximum power voltage (Vmp/V)	11.0
Maximum power current (lmp/V)	9.55
Open circuit voltage (Voc/V)	13.0
Short circuit current (Isc/A)	10.51
Transparent (%)	25.5
Working temperature (℃)	-40~ +85
Fault structure (mm)	3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
Cable	4m㎡/300mm
Dimension (mm)	930mm*730mm
Weight (kg)	12.5kg
Wind loads resistance	2.4KN/㎡
Cells No.	20 (5*4)
*STC (AM1.5,1000w/㎡,cell temperature 25℃) 10-year material & workmanship warranty 30-year linear power warranty

Utility
It is a photovoltaic power generation facility that is constructed and operated at or near the user's site, and is characterized by self-consumption on the user's side, excess power being connected to the Internet, and balanced adjustment in the distribution network system.
View More 
Commercial & Industrial
The advantages of installing a solar power generation system for industrial and commercial users include: large industrial and commercial electricity consumption, high electricity price, large proportion of self-generated and self-consumption, short payback period, and high yield;
View More 
Residential
Small home solar power system is composed of solar module, solar controller, battery (group). If the output power is AC 220V or 110V, an inverter is also required.
View More 
