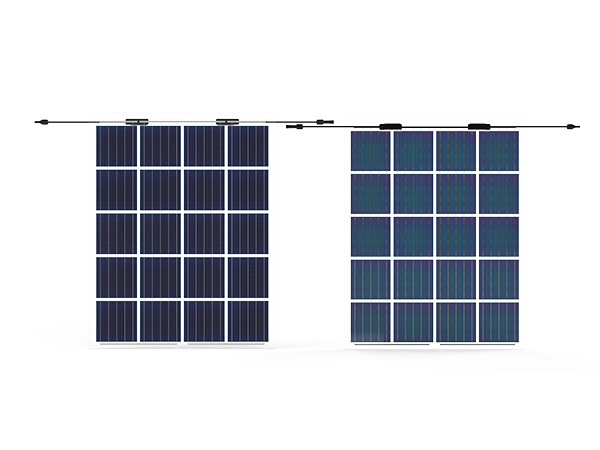

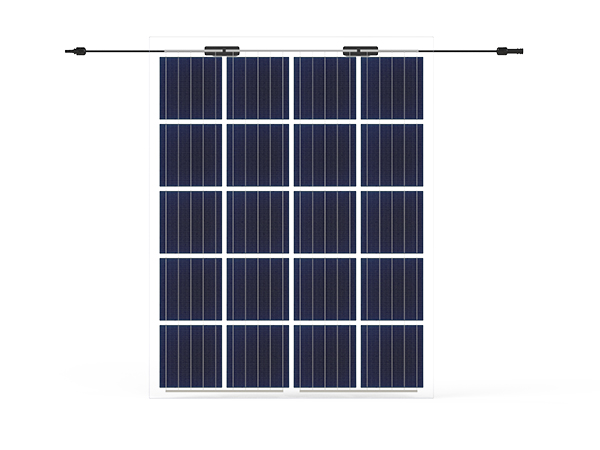

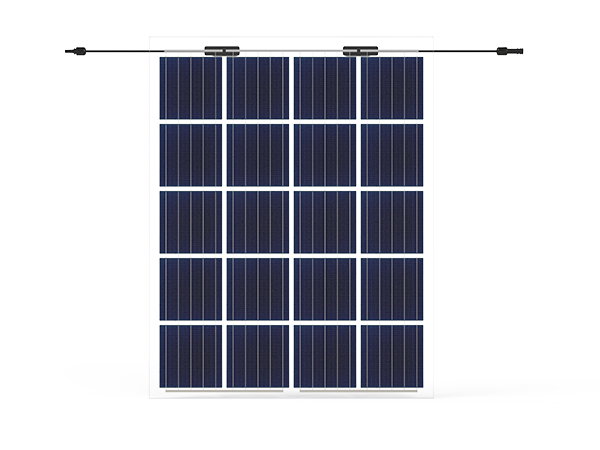

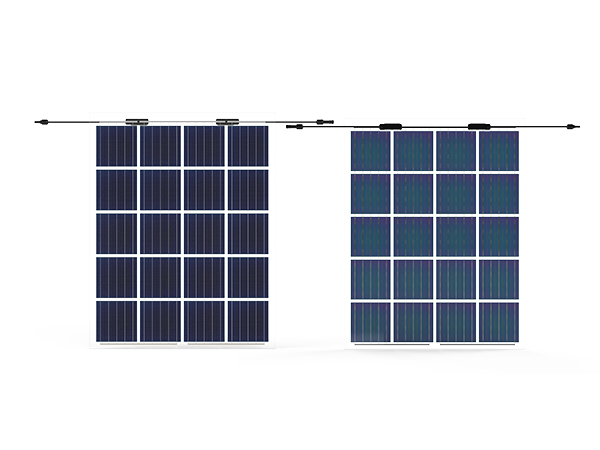

RXJJ-105B

  • Monocrystalline Cell: 20 Cells
  • Maximum Power: 105W
  • Transparent (%): 22.5%
  • Junction box/Connector : Ip68,split / MC4 compatible
  • Module Dimensions: 910mm*715mm*7mm
  • Weighr: 11.5kg

Product Introduction

Product Advantage

  1. High power output

30 year linear performance warranty, more than 30% additional power gain.



  1. Zero LID & PID

No LID, more power generation.

No PID, stable power generation.



  1. Fire safety performance

Higher fire safety class to minimize fire risks.



  1. Outstanding module performance

Higher power output, even under low light conditions.

Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.



  1. Wider applications & more flexible installed angle

No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.



Product Parameters

Mechanical performance parameters

Model RXJJ–105B
Maximum power at STC (Pm/Wp) 105
Maximum power voltage (Vmp/V) 11.0
Maximum power current (lmp/V) 9.55
Open circuit voltage (Voc/V) 13.0
Short circuit current (Isc/A) 10.51
Transparent (%) 22.5%
Working temperature (℃) -40~ +85
Fault structure (mm) 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
Cable 4m㎡/300mm
Dimension (mm) 910mm*715mm*7mm
Weight (kg) 11.5kg
Wind loads resistance 2.4KN/㎡
Cells No. 158.75mm    20pcs (5*4)
*STC (AM1.5,1000w/㎡,cell temperature 25℃)

10-year material & workmanship warranty

30-year linear power warranty
